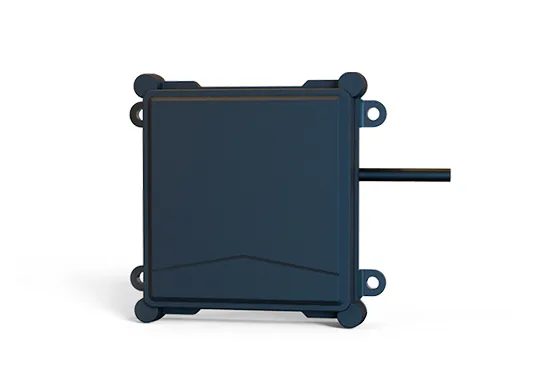

The RFS100-M-CAN from SentiAcu is a compact, high-precision millimeter-wave radar sensor. It ensures operational safety for UAVs by providing stable 100m detection, delivering critical data on obstacle range, velocity, and azimuth to enable reliable navigation and obstacle avoidance.
Operating at 79GHz, the radar emits a fan-shaped beam to scan the forward area. It processes echo signals to accurately detect obstacles up to 100m away, providing real-time measurements of relative distance, speed, and azimuth angle for informed navigation decisions.
Range: 100m
Frequency Band: 79GHz
Size: 92 mm × 76.1 mm × 22.3 mm
Weight: 109.5 g
Designed with a small footprint and low weight, the sensor is highly adaptable for various UAV platforms. Its high sensitivity and stable performance ensure consistent reliability in demanding missions, allowing for seamless integration and enhanced operational safety.
Frequncy: 33 Hz
Beamwidth: ±60°
Range Resolution: 0.2m
Air-UAV
