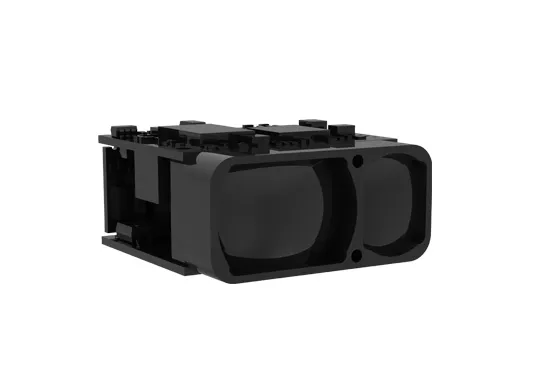

The SPL1K2 is a lightweight, compact, kilometer-range single-point LiDAR that is eye-safe. It is used in inspection drones, drone pods, and engineering surveys for distance maintenance and auxiliary position estimation.
Weighing only 11 grams, the SPL1K2 provides kilometer-range capability, significantly extending drone flight time (every 1g reduction boosts endurance by ~6 seconds). Its design allows for easy integration into compact airframes or gimbals.
Range: 1200 m
Dimensions: 25 mm × 25 mm × 13 mm
FoV: ~6 mrad
Weight: 11 g

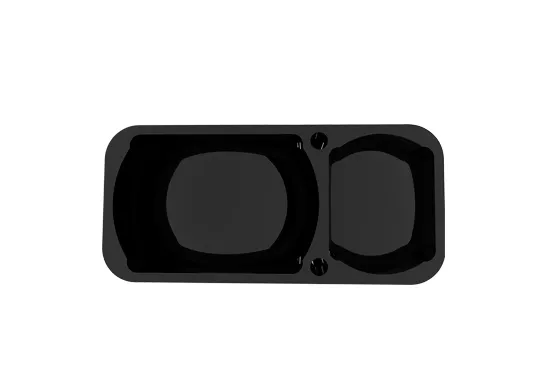

A unique optical design results in a compact size, making it ideal for integration into the tight spaces of small airframes or compact gimbals.
Accuracy: 1% @ ≤ 200 m
Frame Rate: 3 Hz
Interface: UART
Operating Temperature: -40 ℃ to +65 ℃
