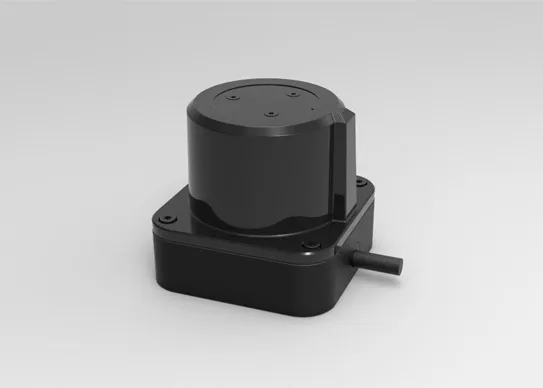

The LSD10 from SentiAcu is a high scanning frequency of up to 30Hz, it delivers real-time environmental awareness for critical functions such as perimeter surveillance, asset security, and automated platform navigation.
A continuously rotating high-speed scanning mirror enables the LSD10 to capture detailed environmental contours across a 270° horizontal plane. This wide FoV ensures comprehensive coverage, eliminating critical blind spots for enhanced security and navigation safety.
Range: ≥ 6km Large Target: Building≥ 5km Vehicle size: 2.3 m × 2.3 m≥ 3km Human: 1.7 m × 0.5 m
Accuracy: ≤ ±1 m
Size: ≤ 50 mm × 23 mm × 33.5 mm
Weight: ≤ 40 g
Operating at a rapid 30Hz scan rate, the LSD10 provides near-instantaneous detection and mapping of its surroundings, showcasing the advanced capabilities of top laser scanner manufacturers. This ensures timely obstacle identification for autonomous systems and enhances situational awareness in dynamic security scenarios.
Frequncy: 10-30 Hz
Power Consumption: 2.5W
Work Temprature: -25℃ ~ +60℃
