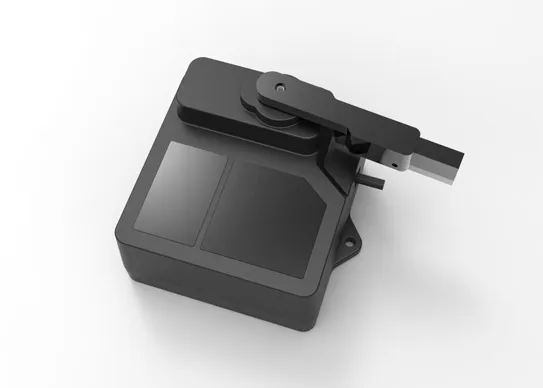

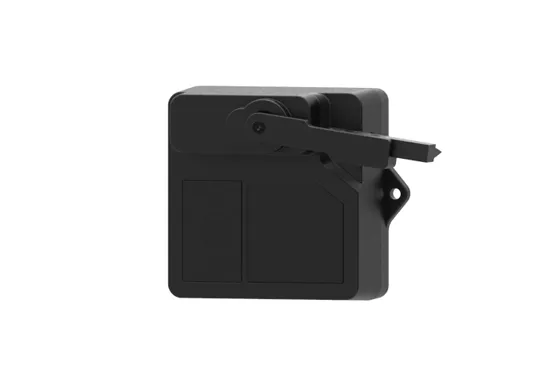

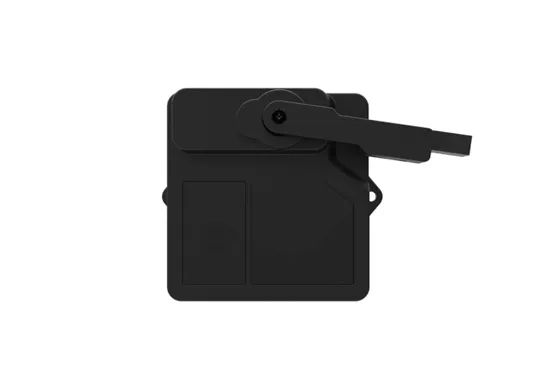

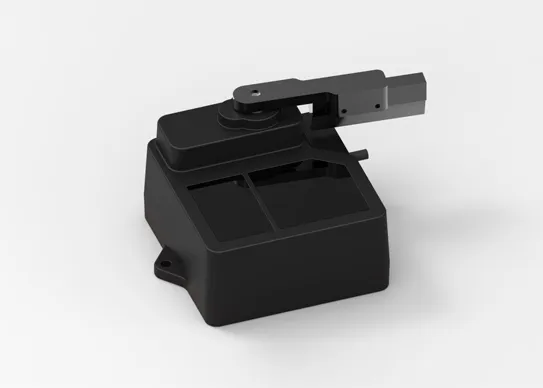

The SPL25-VM is an industrial LiDAR sensor engineered for precise level detection and volume monitoring of bulk materials. It features an integrated self-cleaning wiper that ensures reliable and accurate performance even in dusty and smoky environments. To deliver consistent results across various working conditions, the SPL25-VM offers a configurable frame rate from 1 to 1000 Hz, an accuracy ranging from approximately ±6 cm to 1%, and robust ambient light immunity of up to 100 KLux within its 25-meter range.
Certifications: CE, ROHS, FDA, FC, CLASS1
The built-in self-cleaning module actively maintains lens clarity, guaranteeing uninterrupted operation and measurement integrity in challenging industrial settings where dust and debris are prevalent.
Self-cleaning
Integrated Design
The SPL25-VM industrial laser distance sensor provides multiple connectivity options, including UART, I²C, and RS-485 interfaces, and supports the Modbus protocol for straightforward integration with various systems and devices. For wireless applications, this battery-powered laser rangefinder also offers support for LoRaWAN, 4G, and Wi-Fi.
Multiple Types of Ports
Battery-powered
Modbus Protocol
Non-contact measurement, built-in dust-filtering algorithm
The Sentiacu SPL25-VM industrial LiDAR delivers highly accurate non-contact distance measurements based on the Time-of-Flight (ToF) principle and a narrow field of view (FoV) design. The reliability of these measurements is further ensured by the combination of its self-cleaning lens and a built-in dust-filtering algorithm. This synergy creates a high-precision laser distance sensor that is both highly functional and efficient.
