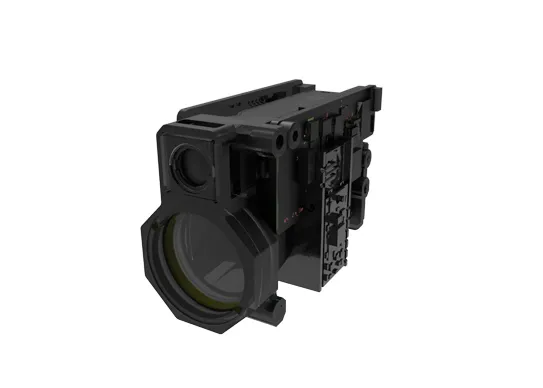

The SPL5K from SentiAcu is a compact, lightweight laser rangefinder. Engineered for versatility, it is ideally suited for integration into handheld, vehicle-mounted, and pod-mounted electro-optical systems.
The SPL5K combines minimal size and weight with exceptional durability. Its high shock resistance allows it to perform reliably in harsh tactical conditions and withstand repeated impact.
Range: ≥ 5 km Large Target: Building≥ 3.2 km Vehicle size: 2.3 m × 2.3 m≥ 2 km Human: 1.7 m × 0.5 m
Accuracy: ≤ ±1 m
Size: ≤ 48 mm x 21 mm x 31 mm
Weight: ≤ 33g ± 1 g
The SPL5K enables its safe deployment in diverse scenarios without requiring additional protective measures, simplifying integration into complex electro-optical platforms.
Frequncy: 1～10 Hz
FoV: ≤ 0.6 mrad
Work Temprature: -40℃ ~ +70℃
