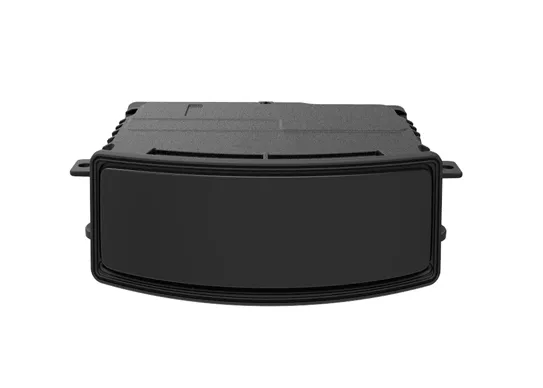

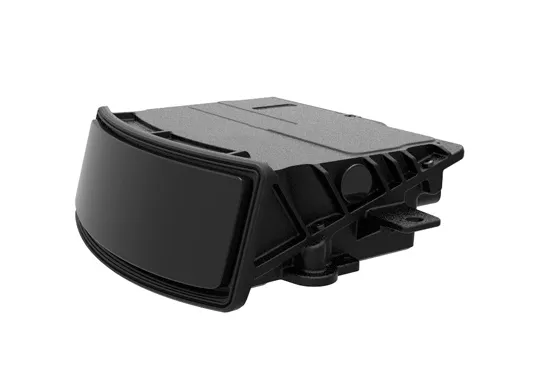

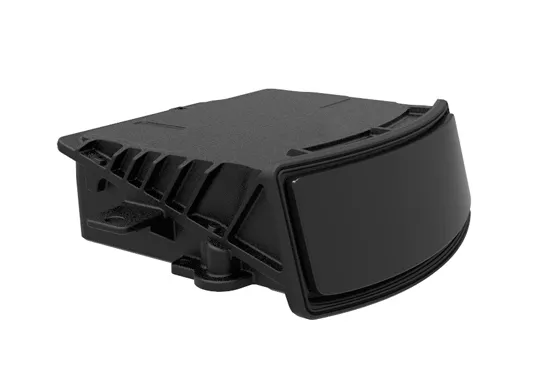

Features of Pixel Array LiDAR PAL-A

Range:

200m @ 10% Reflectivity

Up to 500m

Field of View:

120° (H) × 25.6° (V)

Resolution:

0.1° × 0.1° (inside ROI)

0.2° × 0.1° (outside ROI)

Frame Rate:

10 Hz

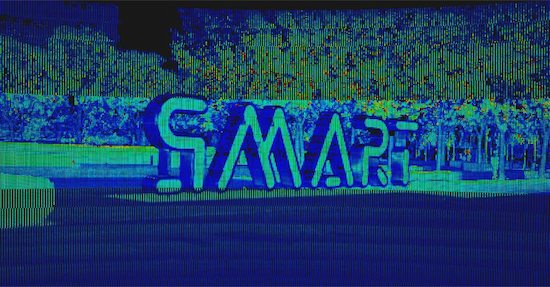

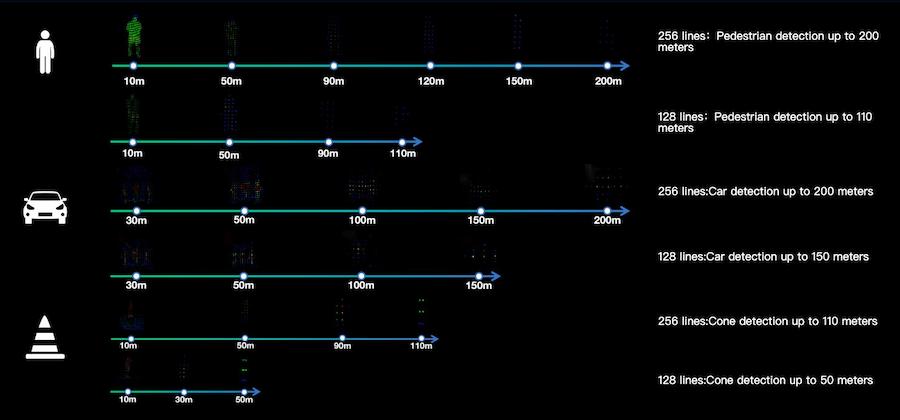

High resolution for robust perception

l256 lines：Pedestrian detection up to 200 meters

l128 lines：Pedestrian detection up to 110 meters

l256 lines:Car detection up to 200 meters

l128 lines:Car detection up to 150 meters

l256 lines:Cone detection up to 110 meters

l128 lines:Cone detection up to 50 meters

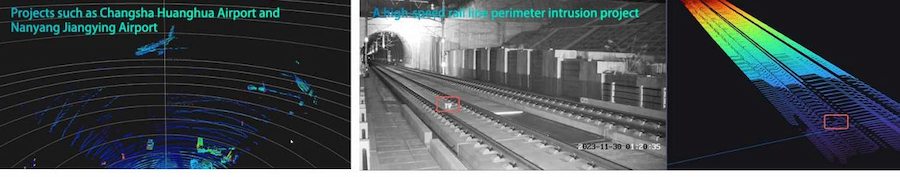

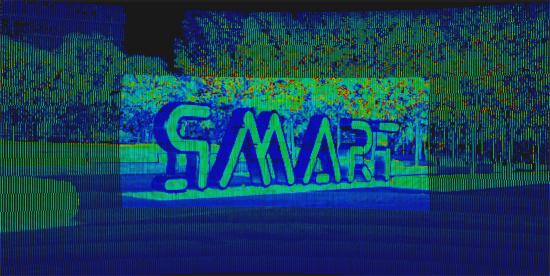

Flexible and easy ROI setting

A built-in ROI (Region of Interest) design enables the LiDAR to concentrate denser point clouds on specific areas, enhancing the detection and recognition of tiny objects. The ROI position and coverage can be flexibly configured for various defense zones without any hardware modifications.
