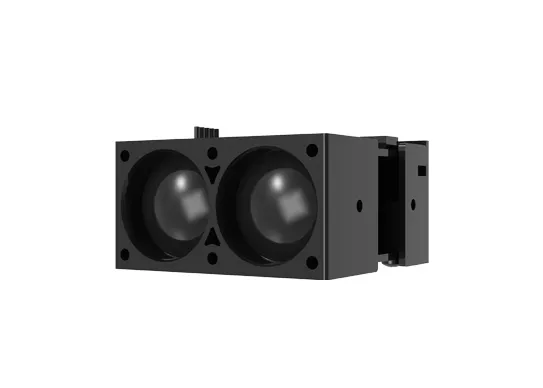

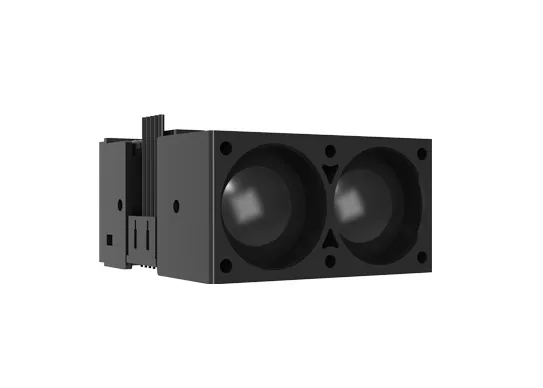

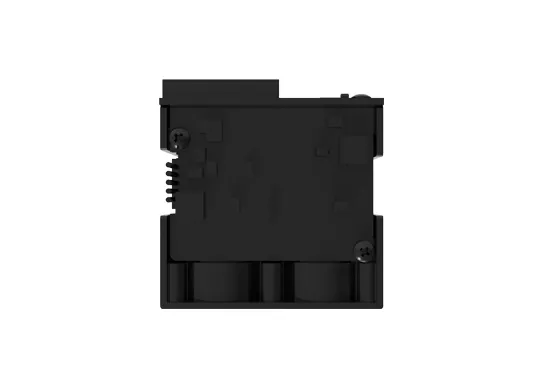

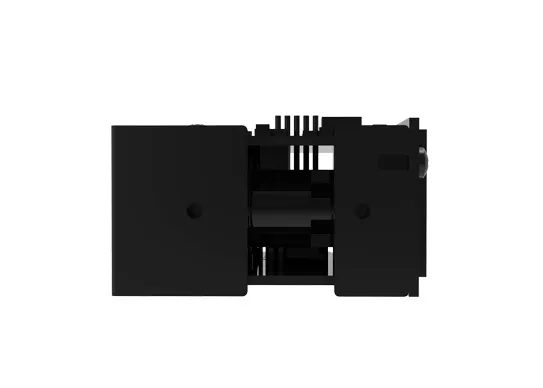

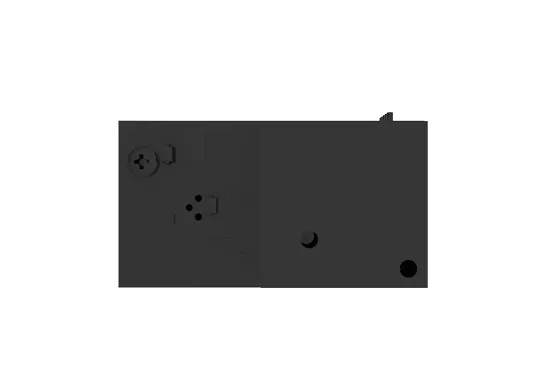

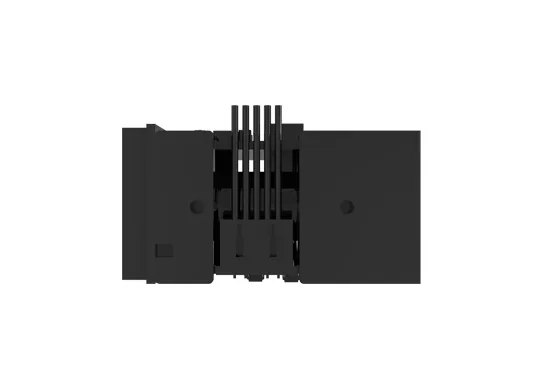

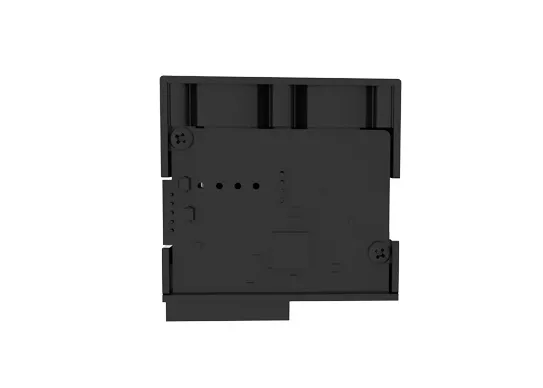

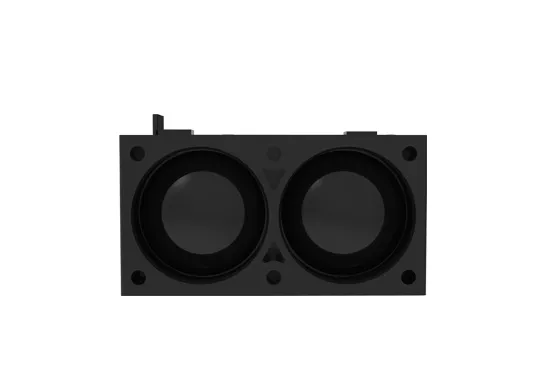

The SPL1K5 is a kilometer-level high-frequency single-point LiDAR with a range of 1500 m and a maximum frequency of 800 Hz, enabling precise and rapid measurement and positioning of distant targets. It is used for inspection drones, drone payloads, and engineering surveying for distance maintenance and auxiliary positioning.
The SPL1K5 provides position data updates at a minimum of 60 Hz for high-speed moving targets at long range, and can achieve up to 800 Hz at close distances.
Close Range Frequency: 800 Hz
Long Range Frequency: 60 Hz
FoV: ~6 mrad
Weight: 11 ± 0.5 g
The 1500m maximum range broadens application possibilities, potentially reducing the number of units required. It improves measurement for various materials, sizes, and angles, while performing better under extreme conditions.
Dimensions: ≤ 25 mm × 26 mm × 13 mm
Accuracy: ± 0.5m (≤ 80m), ± 1.0m (> 80m)
Operating Temperature: -20 ℃ to +60 ℃
