The SPL300 series includes the ultra-light SPL300-L (without housing) and the SPL300 with an IP67 protective housing. Both models feature a frequency of up to 10,000 Hz. In applications like EO/IR Gimbals, SAR Drones, and high-speed FPV racing drones, the SPL300 series facilitates auto-adjustment of camera focal distance, precise localization, stable altitude maintenance during cruise, and obstacle avoidance during high-speed flight.
The SPL300 series defaults to a frequency of 1-1,000 Hz and can be adjusted to 10,000 Hz in ultra-high-frequency mode. It collects data 10,000 times per second, capable of detecting objects at Mach 1 with real-time distance updates every 3.4 cm. This allows for faster obstacle detection and quicker reaction times for drones.
Frame Rate: 10,000 Hz
Range: 0.1 - 290 m
FoV: < 0.5°
Weight: 10.5 g

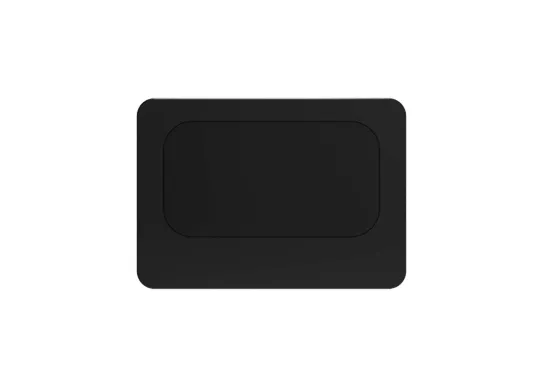

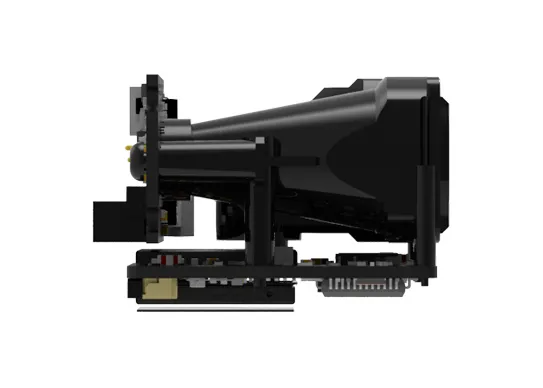

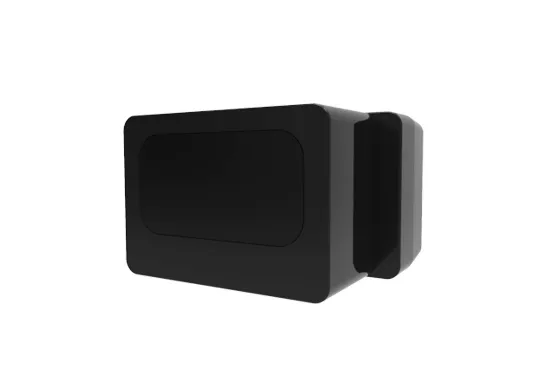

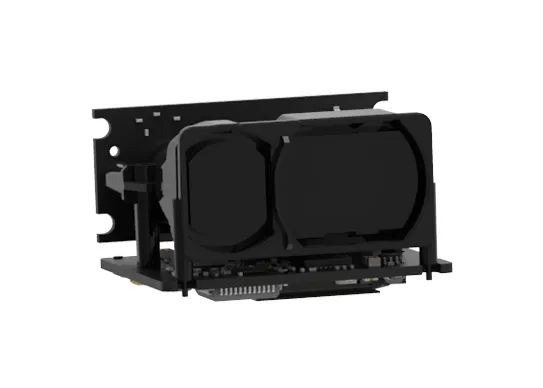

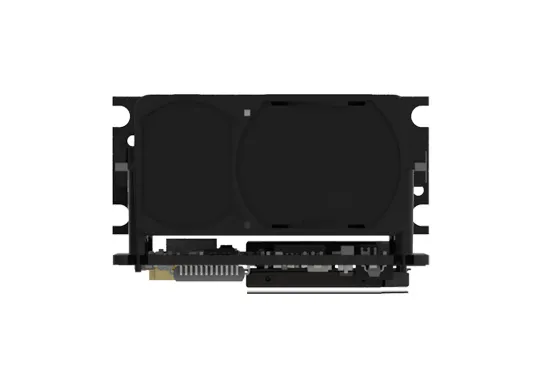

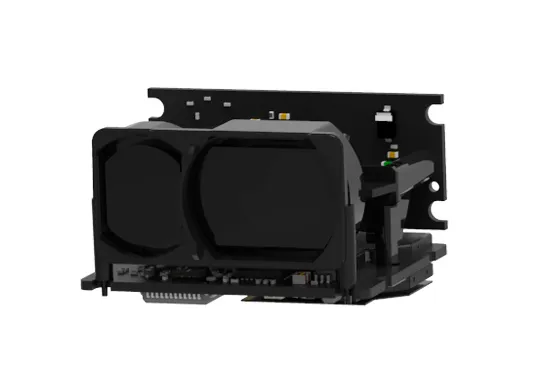

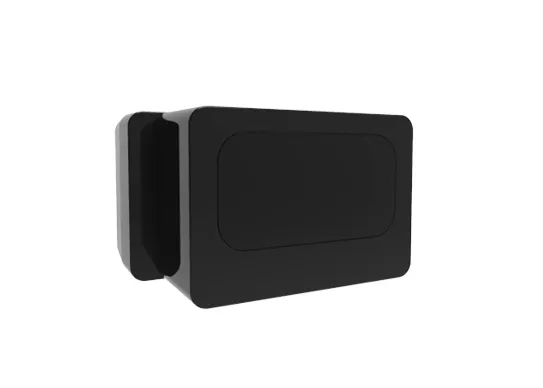

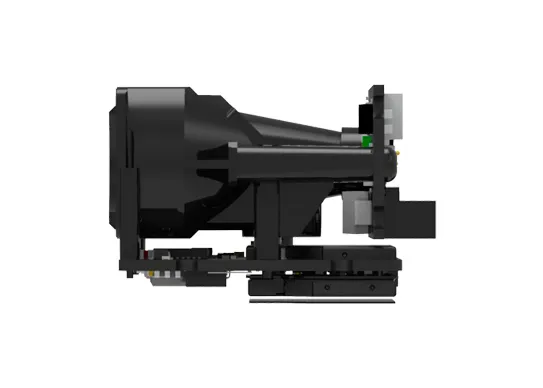

The SPL300-L weighs 10.5 g with a size comparable to two stacked dice, while the IP67-rated SPL300 variant offers protective durability at 34.5 g. The series' compact form factor enables direct integration into EO/IR gimbals, achieving SWaP-C (Size, Weight, Power, and Cost) optimization.
Dimensions: 32.0 mm × 30.2 mm × 20.2 mm
Accuracy: ± 10 cm (< 10 m), 1% (≥ 10 m)
Operating Temperature: -20 ℃ to +60 ℃
The SPL300 series uses industry-standard JST GH connectors for direct connection to flight control platforms without adapters. It features a CAN interface compatible with next-gen flight control architectures. With an SDK supporting the DroneCAN protocol, it offers plug-and-play compatibility with mainstream flight controllers, significantly reducing development time and deployment costs.
The SPL300 series is fully optimized for complex drone applications, operating under extreme temperatures, 100 KLux ambient light, and harsh outdoor conditions like rain, fog, and dust. It effectively mitigates frequent false detection issues common in conventional LiDAR systems. This technology has enabled delivery drone customers to achieve over 400,000 accident-free package deliveries globally.
