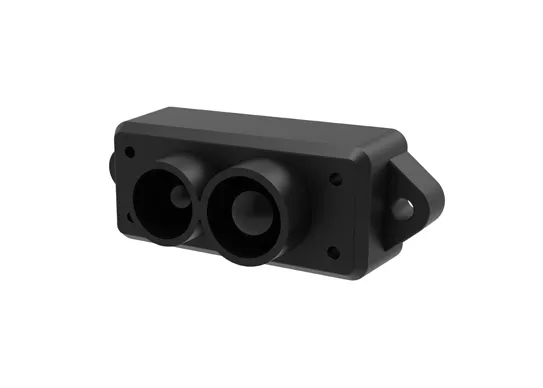

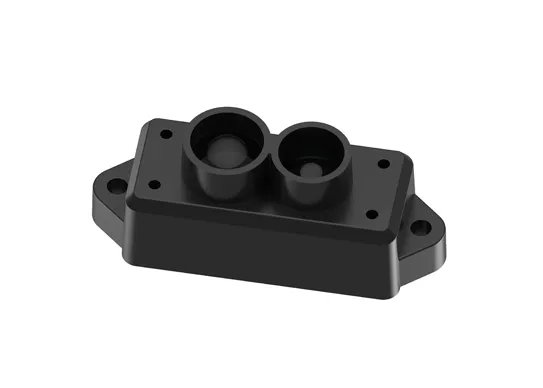

The SPL12 is a low-cost, compact, and lightweight micro LiDAR sensor featuring an enhanced frame rate. With versatile interfaces for various platforms, it caters to a wide range of customer needs in short-range applications.
Featuring a streamlined design measuring 42 mm × 15 mm × 16 mm, and equipped with robust UART, I²C, and I/O communication interfaces, this micro LiDAR sensor can be seamlessly integrated into space-constrained products and systems.
Weight: 5 g
Dimensions: 42 mm × 15 mm × 16 mm
Low Cost
Weighing a mere 5 grams, the SPL12 micro LiDAR module embodies sophistication in simplicity. It resists ambient light up to 70 KLux and achieves an accuracy of ±6 cm within a 0.1 to 6-meter range. Furthermore, its blind zone is reduced to just 10 cm, enabling detection of very close objects—a critical feature for safety in applications like pedestrian and vehicle detection.
With an average current of ≤ 140 mA and power consumption of ≤ 0.7 W, the SPL12 helps reduce overall system power consumption and extends LiDAR lifetime. It simultaneously delivers a frame rate of up to 1000 Hz, providing real-time, high-frequency range detection. This combination of low power and high frame rate is essential for timely detection and safe navigation.
