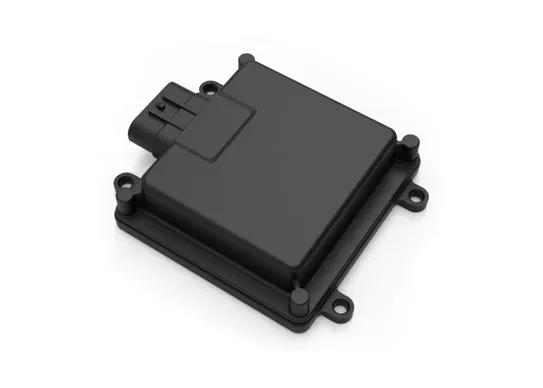

The RFS40-M-CAN from SentiAcu is a compact 77GHz millimeter-wave radar. It provides reliable forward obstacle detection and collision warning up to 40 meters, delivering critical data on relative distance, speed, and angle via a CAN interface, making it an excellent complement to lidar and radar fusion systems. Its performance remains robust in adverse weather and electronic warfare conditions.
The RFS40-M-CAN millimeter-wave technology ensures superior resistance to weather elements like rain and fog, as well as electronic interference. This guarantees consistent 40m range detection and reliable alerts in contested environments.
Range: 40m
Frequency Band: 77-78GHz
Size: 92 mm × 76.1 mm × 22.3 mm
Weight: 109.5 g
By transmitting dual fan-shaped beams, the radar accurately identifies obstacles and provides real-time data on their position and motion. This information is processed by the vehicle's control system to enable automated risk assessment, warning, and even deceleration or braking functions.
Frequncy: 33 Hz
Beamwidth: ±60°
Range Resolution: 0.1m
