Light Weight
Compact Design
High Accuracy
Long Range
Low Power Consumption
As the third-generation product of the TF series, the SPL100/180-Pro inherits the high cost-effectiveness and integration of its predecessors while upgrading over ten key performance indicators. It offers multiple extended functions and high product maturity, meeting diverse needs in applications such as drones, intelligent transportation, and security warning systems.
A unique optical system and signal processing circuit design enhance ranging performance while maintaining a compact size. Beyond a range exceeding one hundred meters, key parameters like accuracy and detection frame rate perform excellently across the entire range. A custom version without an outer shell is available, weighing only 10 g and measuring 31.0 mm × 30.2 mm × 19.2 mm (please consult Sentiacu for detailed specifications).
Operating Range: 180 m
Blind Area: Min 0.1 m
Frame Rate: Max 7 kHz
Ambient Light Immunity: 100 KLux

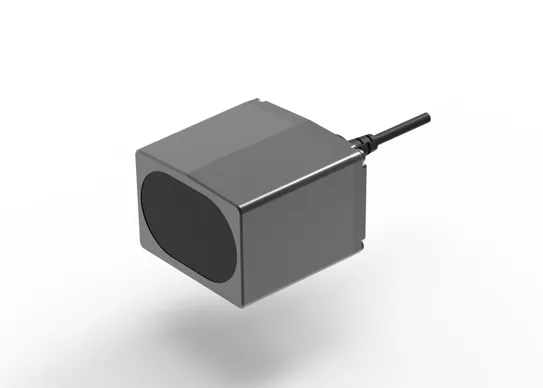

The SPL100/180-Pro LiDAR features a shell made of aluminum alloy and infrared band-pass glass, enhancing overall strength and long-term reliability under various conditions. It integrates multiple interfaces, including UART, CAN, RS-232, RS-485, and 4-20mA, enabling robust real-time data exchange crucial for vehicle collision avoidance, UAV assisted takeoff/landing, and traffic flow analysis.
Users can customize multiple parameters of the SPL100/180-Pro based on their usage scenario, such as output frame rate, baud rate, trigger mode, and over-range threshold. A built-in BootLoader function allows for convenient local firmware upgrades. Customized products for drone applications are also available; please consult Sentiacu customer service for detailed parameters.
