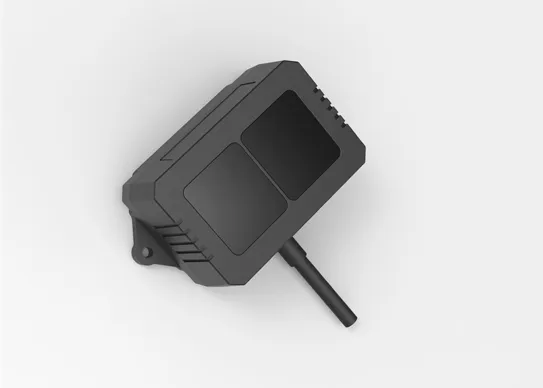

Built upon the Sentiacu SPL40 platform, the SPL40-Pro LiDAR is a cutting-edge ToF sensor engineered for rugged outdoor use. It boasts an IP65 rating for durability and can withstand ambient light levels up to 100 KLux. Enhanced optical and circuit designs deliver a longer range, reduced blind spots, and lower power consumption. Advanced algorithm optimizations significantly improve error performance across diverse environments. It is widely used in drone altitude holding, intelligent transportation, smart parking, and smart agriculture.
Renowned for its exceptional range of 0.1 - 40 m @ 90% reflectivity, the SPL40-Pro features a minimal blind zone of just 10 cm and a maximum frequency of 1000 Hz. This compact proximity sensor captures rapid and precise data, ensuring unparalleled performance in distance measurement, object detection, and tracking over a 40-meter range.
Range: 40 m
Frequency: 1 - 1000 Hz
Optimization Algorithm
Innovative manufacturing processes and hardware improvements give the SPL40-Pro an IP65 classification, ensuring complete protection against dust and water jets from any direction. The integrated structure further enhances its resilience to shocks and collisions.
Good Bright Light Immunity
IP65 Rating
High Strength
Compact Size
Based on the Time-of-Flight principle, the Sentiacu SPL40-Pro employs a special optical system design and fusion algorithm. This allows the sensor to correct errors and operate reliably even in challenging outdoor environments with ambient light levels up to 100 KLux.
The SPL40-Pro LiDAR ensures adaptable connectivity with support for UART and I²C interfaces, catering to a broad spectrum of hardware setups. Its wide voltage input range (DC 5V to 12V) offers flexibility for diverse power systems. Reverse connection protection safeguards the unit from incorrect wiring, ensuring reliable and hassle-free integration for this single-point ToF LiDAR.
