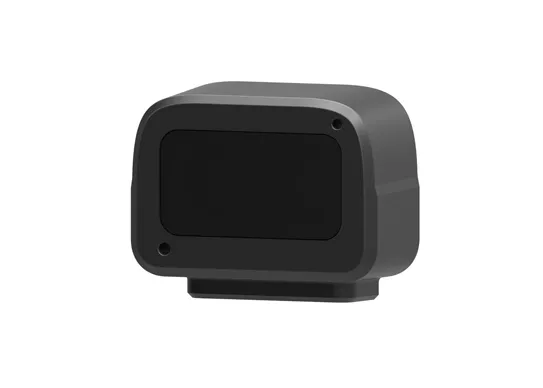

Utilizing a line pattern laser beam, Sentiacu pioneers the industry's first one-dimensional area detection solution. It boasts a compact form factor, multiple interface options, a waterproof lens, and the versatility for both indoor and outdoor applications. An extensive command set guarantees seamless integration.
The SPL14, with a 14° × 1° field of view (FoV), can detect an area of 25 × 1.7 cm² at a distance of 1 meter, comparable to the area of two chopsticks laid side by side.
Range: 0.1 - 14 m
FoV: 14° (H) × 1° (V)
Frequency: 1 - 900 Hz
Weight: ≤ 5 g
Note: The light spot is oriented vertically. Please consult Sentiacu to confirm installation requirements.

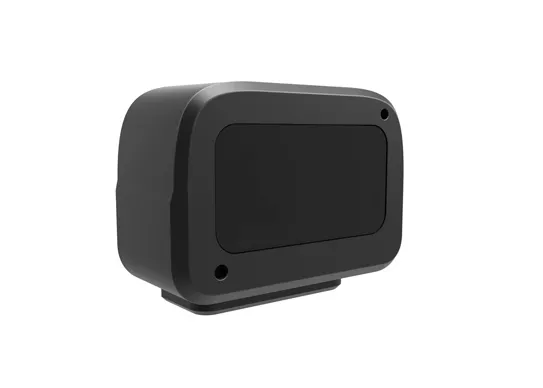

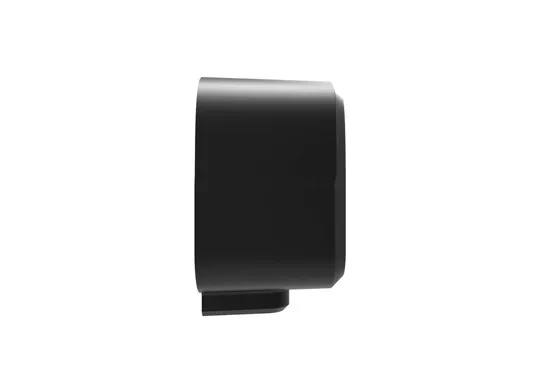

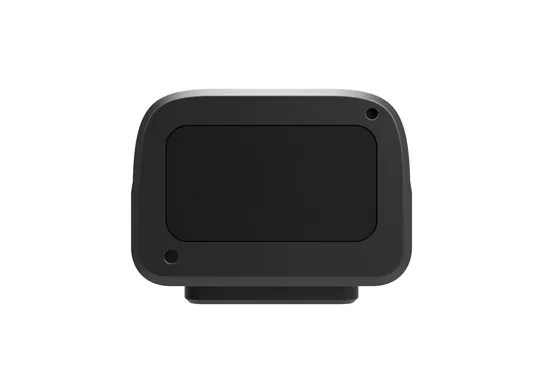

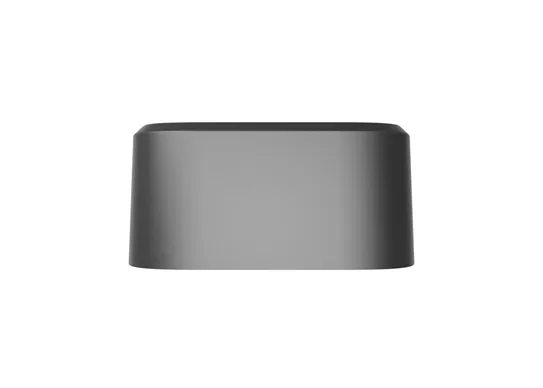

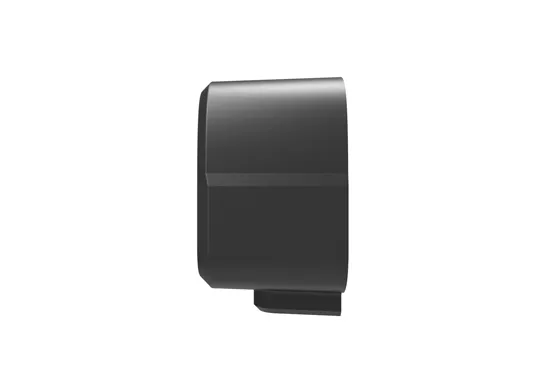

With dimensions of 26.5 mm × 21.05 mm × 12 mm and a volume of approximately 7 cm³, the unit is smaller than a standard AA battery. This compact design offers significant convenience and flexibility for system integration.
Size: 26.5 mm × 21.05 mm × 12 mm
Accuracy: ± 5 cm @ 0.1 - 4 m
Operating Temperature: -25 ℃ to +70 ℃
The SPL14 consistently detects a 5 cm target with 10% reflectivity at a range of up to 2 meters, performing reliably in both bright sunlight and low-light conditions. This capability ensures the detection of low-reflectivity objects, such as black vehicles, within 2 meters even during summer.
High Accuracy
Strong Ambient Light Immunity
Interference Resistance

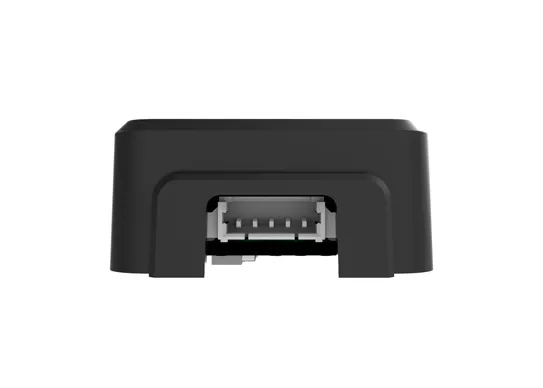

The SPL14 supports both standalone and networked operational modes. It can also be configured for I/O output mode, which substantially reduces the data processing load on the host system. Communication is facilitated through UART and IIC interfaces.
