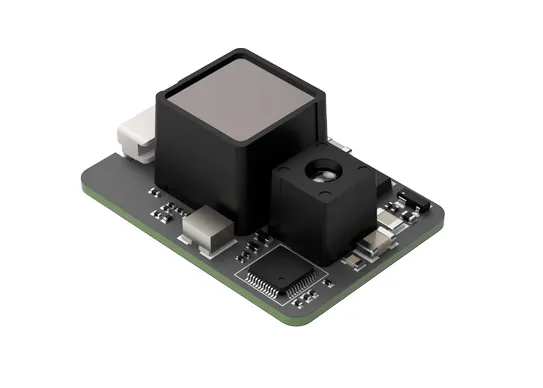

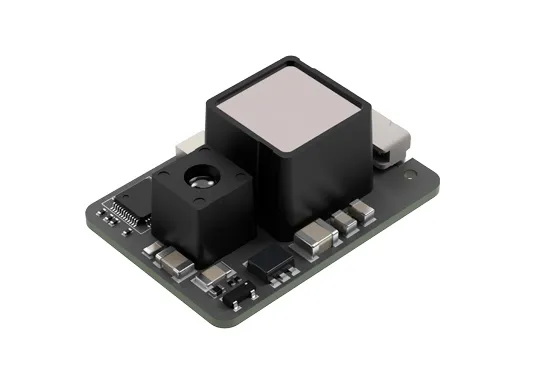

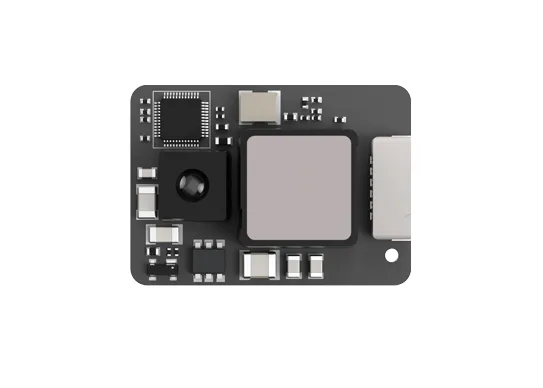

The SPL20 is a fully integrated single-channel dToF (direct Time-of-Flight) ranging mini-module that incorporates a highly sensitive infrared-enhanced SPAD sensor, achieving ranges of up to 20 m. Utilizing a fully integrated SPAD chip solution, histogram statistical algorithms, and a fast TDC architecture, it delivers high-precision distance measurement. It also features sunlight resistance of 15 m @ 100 KLux and includes reflectivity correction.
Combining a compact size, lightweight design, accurate long-range measurement capabilities, and excellent performance under strong ambient light, the SPL20 is an ideal choice for miniature dToF applications.

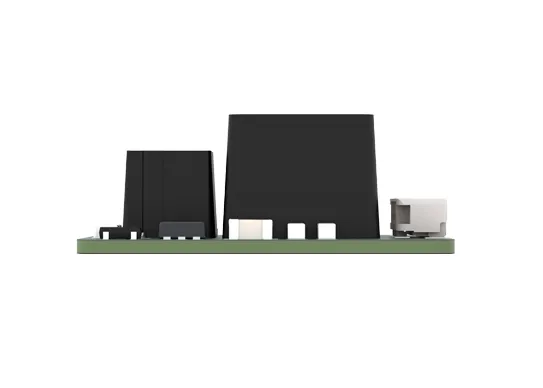

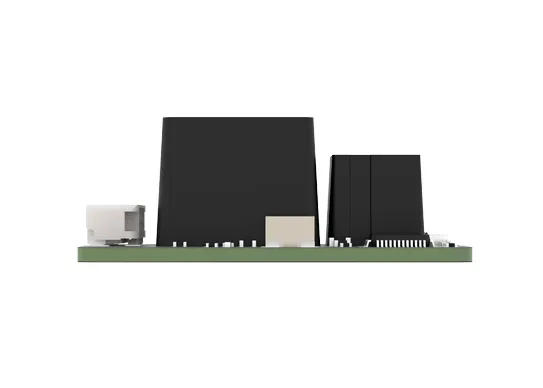

Dimensions: 21 mm × 15 mm × 7.87 mm
Weight: 1.35 g
Accuracy: ± 6 cm
Anti-ambient light: 100 KLux

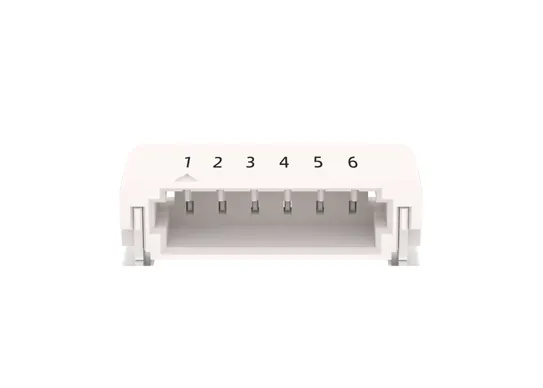

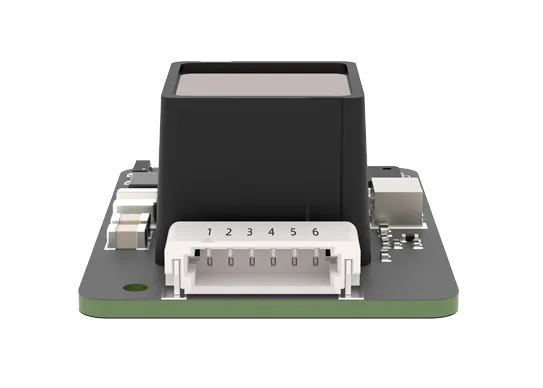

The SPL20 operates on a single 3.3V power supply and features an integrated power module with built-in temperature compensation. Supporting I²C and UART interfaces, it is easy to integrate and use. Its compact and reliable optical packaging makes it suitable for a wide range of applications, including consumer drones, service robots, and the Internet of Things (IoT).
