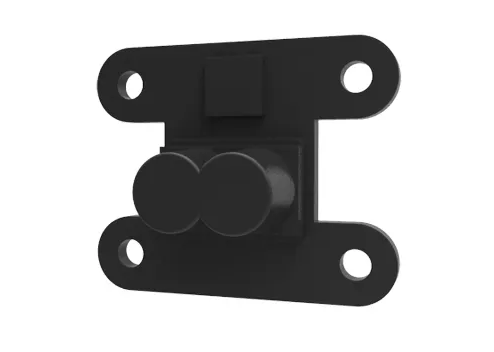

Choosing between different lidars is not only about range or point density — it is about integration effort, reliability, and whether your project truly needs full 3D mapping. For many industrial applications, a single point lidar delivers the cleanest path to stable measurements, faster validation, and lower system complexity. This guide explains when single-point sensing outperforms scanning and what to consider before specifying your next module.
| Characteristic | Single Point Lidar | Scanning Lidar |
|---|---|---|
| Output | One distance value per sample | Thousands of points per scan |
| Data volume | Minimal | High |
| Processing required | Low — threshold or PID logic | High — point cloud pipeline |
| Integration effort | Low | Significantly higher |
| Calibration | Simple range verification | Angular model, scan pattern, registration |
Answer one question before specifying: does your application need distance to a target, or a spatial map of the environment?
If you need distance — a moving actuator, a passing object, a liquid level, a gap between parts — a single point lidar is the correct specification. Adding a scanning lidar to a task that only needs one distance value adds cost, processing overhead, and failure modes without adding functional value.
| Integration Factor | Single Point Lidar | Scanning Lidar |
|---|---|---|
| Software development | Days to weeks | Weeks to months |
| Real-time control | Direct — distance feeds control loop immediately | Indirect — point cloud must be processed first |
| Field troubleshooting | Simple — check reading, verify mounting | Complex — scan quality, pipeline, registration drift |
| Failure modes | Few | Many |
| Latency | Deterministic and low | Variable depending on processing |
Common engineering wins with single point:
Shorter development cycle from prototype to production
Fewer failure modes in the complete sensing chain
Lower bill-of-materials cost per measurement axis
Easier field maintenance without specialist tools
Predictable latency for closed-loop control
For any application where the goal is a stable, repeatable distance signal feeding a control system, single point lidar is almost always the better starting specification.
| Application | Why Single Point Fits |
|---|---|
| Actuator and lift positioning | One distance value per axis; high update rate required |
| Conveyor gap monitoring | Fast threshold trigger; no spatial context needed |
| Level and height measurement | Single vertical beam; clean repeatable output |
| Presence detection | Binary threshold on distance; simple and reliable |
| Gantry and crane positioning | High repeatability along one travel axis |
| Robotic end-effector control | Low-latency distance signal for closed-loop approach |
| Factor | Consideration |
|---|---|
| Dust and particulate | Optical window contamination; schedule cleaning protocol |
| Vibration | Rigid mounting essential to prevent alignment drift |
| Tight spaces | Single point modules are compact; scan heads require more volume |
| EMC and EMI | Confirm compliance documentation for the installation class |
| Temperature range | Verify operating range covers idle and full running conditions |
In industrial automation, the specifications that drive performance are update rate and repeatability — not range or point count. A system measuring with 1 mm repeatability at 1 kHz is far more valuable for control than a scanning system with higher noise at lower update frequency.
| Specification | Why It Matters |
|---|---|
| Range window | Must cover your actual mounting distance to target |
| Accuracy | Defines whether the sensor resolves your required measurement |
| Repeatability | Controls loop stability — noise causes instability |
| Sampling rate and latency | Determines control loop bandwidth |
| Spot size and divergence | Affects minimum target size and edge behavior |
| Target reflectivity range | Industrial targets span dark to highly reflective |
| Ambient light immunity | Critical for outdoor or near-window installations |
| Interface (UART, CAN, Ethernet, I/O) | Must match your controller without additional conversion |
| IP rating and temperature range | Must survive the installation environment |
Always test on your real surfaces and at your real mounting geometry:
Test on the darkest surface in your application — often the limiting case
Test on any reflective or specular surfaces present
Validate at both ends of your target distance range
Confirm repeatability under vibration if machinery is present
Integrate the interface with your controller before finalizing
| Factor | Best Practice | Risk If Ignored |
|---|---|---|
| Mounting rigidity | Bolt to machined surface or stable bracket | Vibration causes drift appearing as process variation |
| Alignment | Confirm beam hits target at expected angle | Off-axis angle errors cause systematic distance offset |
| Window access | Provide maintenance access for cleaning | Dirty window reduces signal return |
| Protective housing | Use IP-rated enclosure in harsh environments | Ingress causes permanent damage |
Even a high-quality single point lidar produces occasional anomalous readings from dust, transient reflections, or brief target loss. Simple software filtering converts the raw stream into a reliable control signal:
Median filter over 3 to 5 samples eliminates single-sample spikes with minimal added latency
Hysteresis threshold prevents rapid output toggling at detection boundaries
Range validity gate rejects readings outside the physically plausible range
Rate-of-change limit flags implausible step changes as spurious rather than real
Performance curves across the full range window
Reflectivity sensitivity data for your target materials
Integration guide with interface details and recommended filtering
EMC test reports for the relevant installation standard
Long-term stability or MTBF data for reliability planning
Scanning lidars are right when spatial understanding is genuinely required. But many industrial and engineering applications do not need it. When the goal is stable, repeatable distance measurement for positioning, detection, or control, a single point lidar delivers the best combination of performance, integration speed, and reliability. The simplest lidar that meets the real measurement requirement is almost always the fastest route to a robust, maintainable product.
Q1: What is the main difference between a single point lidar and a scanning lidar?
A single point lidar measures distance along one fixed line-of-sight, producing one value per cycle. A scanning lidar sweeps across angles to produce a 2D profile or 3D point cloud. Single point is 1D ranging; scanning is spatial sensing.
Q2: When is single point lidar the better choice?
When the application needs a stable, repeatable distance signal to a known target for control, detection, or positioning — and does not require spatial understanding of the environment. It integrates faster, requires less processing, and is easier to maintain than a scanning system.
Q3: Can single point lidar work on dark or reflective surfaces?
Performance depends on wavelength, optics, and signal processing. Always validate on your actual target material and surface finish at the actual mounting distance before finalizing the specification.
Q4: What specs matter most for industrial automation lidars?
Repeatability, sampling rate and latency, range window, ambient light immunity, and interface compatibility are the most critical. Environmental ratings (IP class, operating temperature) are equally important for production deployment.
Q5: How do I reduce false readings in a deployed single point lidar?
Use rigid mounting, keep the optical window clean, validate beam alignment at installation, and apply software filtering — median filter for spike removal, hysteresis at detection boundaries, and a range validity gate that rejects physically implausible readings.
