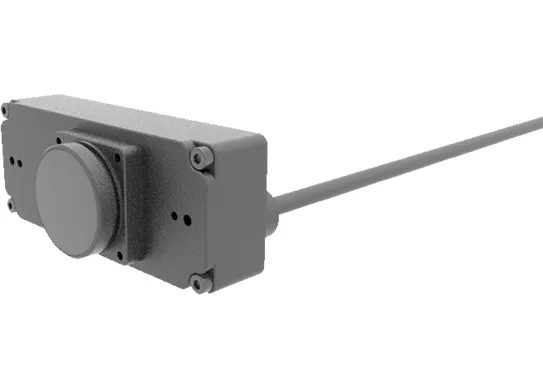

A compact sensor for proximity-fuze system integration, featured with a 48° field of view, 2 kHz sampling rate and CM-level accuracy.
| 48 | 2 kHz | ≥20 m | ≤5 cm |
| Channels | Sampling rate | 10% reflectivity·100 klux | Accuracy |
With the size of a pocket lighter, the sensor fits perfectly into counter-drone system integration.
LiDAR sensing module for proximity-fuze system integration.
| 100 g | ≤ 3 W | 81×32.5×30.2 mm |
| Lightweight | Low power | Compact size |

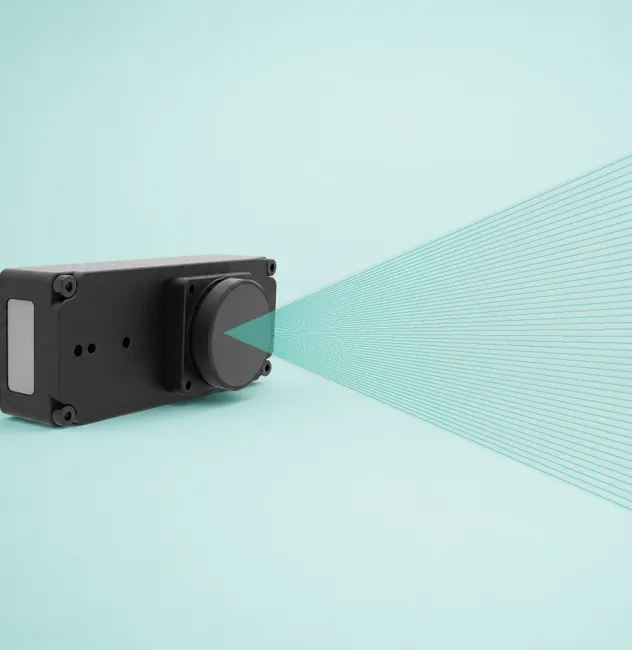

A 48° field-of-view coverage defines the sensing region, while the high sampling rate easily captures high-speed targets during fast closure.
Detect capability
≥20 m
At 10% reflectivity and 100 klux
| 48 | 48° | 2 kHz |
| Channels | Field of view coverage | Sampling rate |

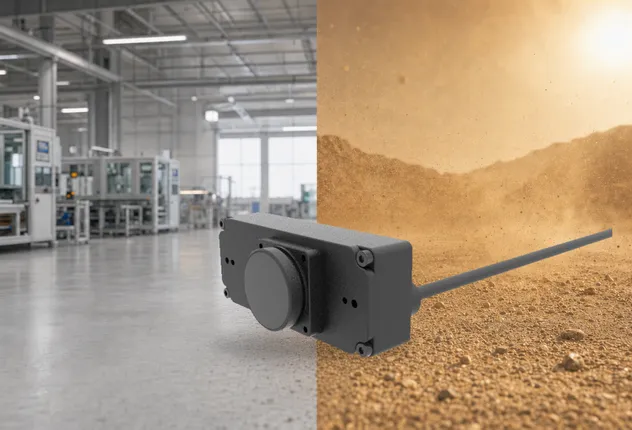

Wide temperature range with -20°C to 65°C operation and IP65 ingress protection.
| -20℃ to 65℃ | IP65 | 100 klux |
| Operating temperature | High ingress protection | High ambient light resistance |
